Product Name：“Lipstick”Serial/Etherner to CAN Converter

Model：USR-CAN114/112

USR-CAN112/114 | “Lipstick” Serial to CAN Converter

The USR-DR112/114 is an ultra-small serial to CAN converter that supports data communication and conversion between RS232/485 and CAN interfaces. This device is compliant with CAN 2.0A and CAN 2.0B specification and has wide CAN baud rate 5Kbps~1Mbps. And it has hign EMC protection so it can work in harsh environments and can be used in multiple scenarioes like automotive electronics, EV charging, industrial aotomation and etc.

Key Features

1. Ultro small Size: Save your space
2. 5 Operating mode: Modbus RTU protocol conversion supported
3. 14 sets of filters: software configurable
4. User configurable baud rate
5. Wide opertating tempterature: -40℃ - +85℃
6. High reliable: EMC protection level 3
7. DIN rail mounting
8. Compliant with CAN 2.0A and CAN 2.0B specification

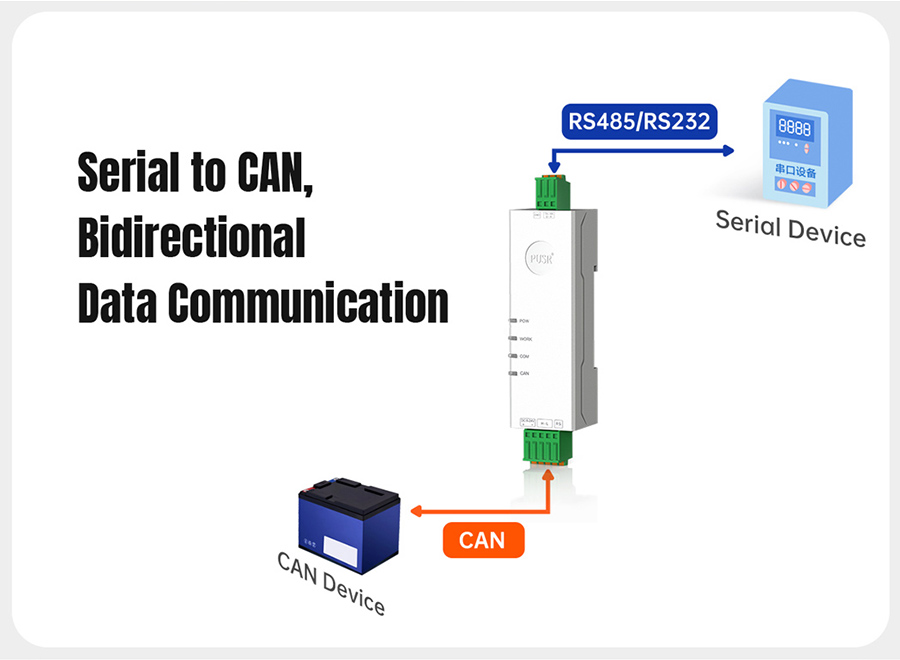

Serial to CAN, Bidirectional Data Communication

With this serial to CAN converter, users can achieve data communication and conversion between RS232/485 and CAN device.

5 Operating Modes Supported

1. Transparent conversion
2. Format conversion
3. Transparent conversion with identifiers conversion
4. Modbus RTU protocol conversion
5. Custom protocol conversion

Multiple Hardware Protection, Reliable and Stable

EMC protection: level 3
Wide operating temperature: -40℃~+85℃
Dual watchdog: hardware & software watchdog, ensure stable operating
Wide power input: DC 5-24V, supports power input anti-reverse

14 Sets of Configurable Filters

USR-CAN114/112 supports filtering data according to standard frame, extended frame and custom. In custom mode, users can set up to 14 sets of filter methods to avoid large amounts of data interference.

Wide Baud Rate

Serial baud rate: 600bps ~ 230400bps
CAN baud rate: 5Kbps ~ 1Mbps

Ultra-small Size

1. 3 Practical Designs, Easy Your Installation
2. Ultra-small size like a lipstic, can be applied to various scenarios, especially the small box.
3. Support DIN rail mounting and wall mounting.

Easy Connection

1. Push-type, pluggable wire connector, easy wiring, no need for additional tools such as screwdrivers
2. Push wire connector
3. Pluggable wire connector

What’s in the box?

Applications

1. Automotive Electronics
2. Industrial Automation
3. EV Charging
4. Traffic Monitoring

Product parameters of USR-C114/112
Classify	Parameter	NumericalValue
Basic Parameters	WorkingVoltage	DC5~24V,recommended 12V 1A
	Size	742422mm (L W H)
	InstallationMethod	RailMounting
	ReloadKey	Press and hold to restore factory settings
	IndicatorLight	POWER、WORK、COM、CAN
Interface parameter	CAN portSpecification	1*CAN port, support standard CAN2.0A/B, press terminal wiring
	CAN portBaudRate	5kbps ~ 1000kbps, support custom
	TerminalResistance	Built-in CAN bus 120Ω termination resistor
	Serial portSpecification	USR-CAN114:1RS485, press terminal wiring USR-CAN112:1RS232, press terminal wiring
	Serial port BaudRate	600-230.4K（bps）
	Data bits	7、8
	Stop bit	1、2
	Parity bit	When the data bit is 7 bits, it supports Odd, Even, Mark and Space; When the data bit is 8 bits, None, Odd and Even are supported.
WorkEnvironment	OperatingTemperature	-40~85℃
	StorageTemperature	-40~105℃
	OperatingHumidity	5%~95% RH(no condensation)
	StorageHumidity	5%~95% RH(no condensation)
SoftwareFunction	Conversion OfMode	Transparent conversion, Transparent band ID conversion, Standard conversion, Modbus conversion, Customize frame header and frame tail
	CAN ID	Support standard frame, remote frame
	Frame IDFiltering	Support standard frames only, remote frames only, custom input frame IDs (up to 14 groups)
	SerialPacketLength	Support custompacket length
	SwitchDirection	Support bidirectional conversion, serial to CAN only, CAN to serial only
	FirmwareUpgrade	Support firmware upgrade on PC
	ParameterConfiguration	AT command, PC software configuration
Protection parameter	ElectrostaticProtection	Air discharge 8kV
	Electrical Fast Transient	Power supply circuit 2kV;Serial CAN port circuit 1kV
	SurgeInterferenceTest	Power supply circuit 1kV; CAN port circuit 2kV

Product parameters of USR-C115
Classify	Parameter	NumericalValue
Basic Parameter	WorkingVoltage	DC5~24V,recommended 12V 1A
	Size	742422mm (length * width * height, excluding terminals)
	InstallationMethod	Rail mounting
	ReloadKey	Press and hold to restore factory settings
	Indicator light	POWER、WORK、NET、CAN
Interface Parameter	CAN portSpecification	1-way CAN port, support standard CAN2.0A/B, press terminal wiring
	CAN port Baud rate	5k bps ~ 1000k bps, support custom
	TerminalResistance	Built-in CAN bus 120Ω termination resistor
	Ethernet Port Specification	RJ45, 10/100Mbps, Cross-Direct Adaptive
	Indicator light	POWER、WORK、NET、CAN
WorkEnvironment	OperatingTemperature	-40~85℃
	StorageTemperature	-40~105℃
	OperatingHumidity	5%~95% RH(no condensation)
	StorageHumidity	5%~95% RH(no condensation)
SoftwareFunction	NetworkingProtocol	TCP server、TCP client、UDP server、UDP client
	Conversion of mode	Transparent conversion, Transparent band ID conversion, Standard conversion
	CAN ID	Support standard frame, extended frame
	Frame ID filtering	Support standard frames only, remote frames only, custom input frame IDs (up to 14 groups)
	Packet Frame Time	Support custom packaging frame number and custom packaging time
	SwitchDirection	Support bi-directional conversion, only network port to CAN, only CAN to network port
	WorkPattern	Normal, Loop, Hear Only
	Firmware Upgrade	Support firmware upgrade on PC
	ParameterConfiguration	AT command, PC software configuration
	Other functions	Heartbeat package, registration package
ProtectionParameter	ElectrostaticProtection	Air discharge 8kV, contact discharge 6kV
	ElectricalFastPulseTrain	Power supply circuit 2kV;Ethernet/ CAN port circuit 1kV
	SurgeInterferenceTest	Differential mode 1kV, common mode 2kV in power supply circuit; common mode 2kV in CAN port circuit; 1kV in network port circuit
