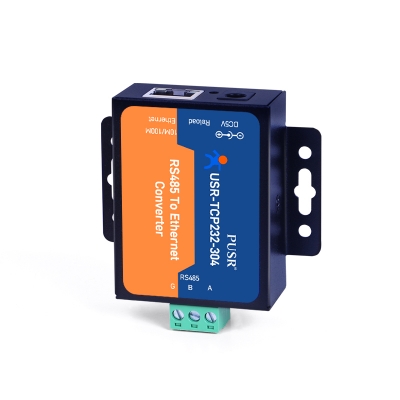

Product Name：1-port RS485 to Ethernet Converters

Model：USR-TCP232-304

Features of rs485 ethernet converter: small size, installed easily.

Characteristics of RS485 Ethernet converter

Ordering Guide

Serial to Ethernet,
Bidirectional Transparent Data Transmission

One More Thing, Modbus Gateway

Connect to PLC, SCADA system or user’s
private server to achieve local or remote motoring.

Multi-Host Modbus Polling
Modbus RTU to Modbus TCP

Multiple User Scenarios

Multi-user Access

Multi-device Management

Virtual-COM Software
This feature can infinitely extend the serial cable,
allowing communication to no longer
be limited by distance.

Point-to-Point Communication
Using this method, it is possible to achieve
data communication between two serial devices.

Additional Features

Heartbeat Packet
Server can detect abnormal disconnection from the client
using this feature (304 as an TCP client)

Customized RFC2217
Users can dynamically modify the baud rate, stop bit,
data bits and parity bit of the TCP232-304 by sending
PUSR customized protocol over the network.

Registration Packet
The server can identify different clients by using
registration packets.

High Reliablity Design

Applications

Intelligent Transportation

By connecting the traffic lights to serial device server, the control
center can collect and process traffic data on-site through Ethernet,
and the collected data can also provide accurate quantitative basis for
traffic command and dispatch and city traffic rules.

Unattended Weighing

Connecting the serial server to the gate, it is convenient for the control
center to remotely control the gate switch through Ethernet.
Multiple serial servers can be used to connect other serial cameras,
weighing instruments,LED displays,RFID card readers,
vehicle induction coils,ticket printers and other peripherals,
enrichin more application scenarios.

Product Details

Shipping List

Model	USR-TCP232-302	USR-TCP232-304	USR-TCP232-306
Processor	ARM Cortex-M0, 48MHz
Power Supply
Power Input	DC: 5.0～7.0 V， Connector: DC 5.5*2.1 mm	DC: 5.0～7.0 V， Connector: DC 5.5*2.1 mm	DC: 5.0～36.0 V， Connector: 5.5*2.1 mm & 2 pin terminal block
Consumption	150mA@5V	150mA@5V	116mA@5V, 53mA@12V
Ethernet Port
Ethernet Port	1 x RJ45, 10/100Mbps, auto MDI/MDIX
Serial Port
Serial Port	RS232	RS485	RS232/485/422(Not work at the same time)
Baud Rate	600~230.4 Kbps
Data Bits	5,6,7,8
Stop Bit	1,2
Parity Bit	None, Odd, Even, Mark, Space
Serial Packeting	Packeting Time: Four-byte sending time Packeting Length: 400 Bytes
Serial Packet Cache	Receive:2KBytes
Reload Button	√
Physical Parameters
Dimension(LWH)	66.370.025.0 mm	73.270.025.0 mm	98.0×86.0×25.0 mm
Installation	Wall Mounting
Operating Temp	-25~75℃
Storage Temp	-40~105℃
Operating Humility	5%~95% RH(non-condensing)
Storage Humility	5%~95% RH(non-condensing)
Indicators	None	None	PWR, WORK,LINK,TX,RX
Software
Network Protocol	IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS
IP Mode	DHCP, STATIC IP
DNS Service	√
Config Method	AT Command, Built-in webpage, Config Software, Config Protocol
Work Mode	TCP Server/TCP Client/UDP Server /UDP Client/Httpd Client
Modbus Gateway	Modbus RTU to Modbus TCP, Multi-host Modbus Polling
User-Defined Webpage	√
TCP Server	16 clients
Network Packet Cache	Send: 6K Bytes Receive: 4K Bytes
Additional Features	RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart
Others
EMC Level	IEC61000, Level 3(Surge, ESD, EFT)
Certificate	CE
