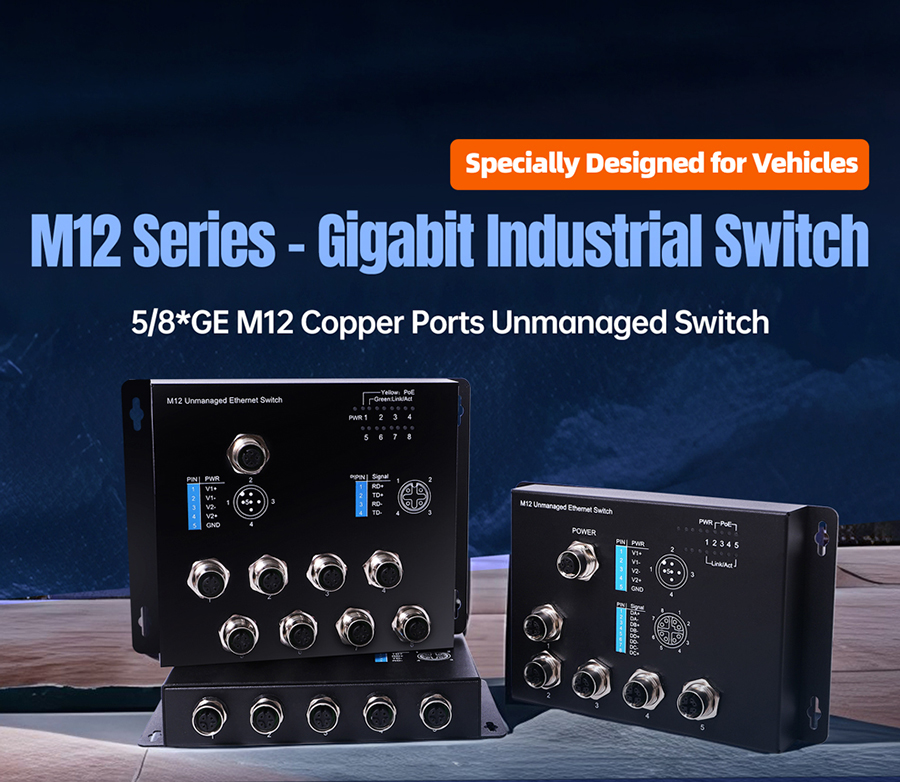

M12 Series - Gigabit Industrial Switch

DC 12~52V input | IP40 Protection | Fanless Heat Dissipation | Electrostatic Protection

Price：
$

Model：
USR-ISG005/ISG008-M12

specifi- cations：
5-Port M12-BG|100M 5-Port M12-BG|Gigab 8-Port M12-BG|100M 8-Port M12-BG|Gigabi 5-Port M12-CZ|100M

Quantity：
- +

Customers Also Bought More+

Top Sellers

$295.20

Integrated Screen of IOT

$276.00

Industrial Mini Computer

$215.00

High Performance Edge IoT Gate...

$54.00

Gigabit Industrial Ethernet Sw...

Product Name：M12 Series - Gigabit Industrial Switch

Model：USR-ISG005/ISG008-M12

Model No.	USR-ISF005-M12-BG	USR-ISF008-M12-BG	USR-ISG005-M12-BG	USR-ISG008-M12-BG
Model No.	USR-ISF005-M12-CZ	USR-ISF008-M12-BG	USR-ISG005-M12-BG	USR-ISG008-M12-BG
Ethernet Port	5 portM12 A-coded 4-pin(F)	8 port M12 A-coded 4-pin(F)	5 port M12 X-coded 8-pin(F)	8 port M12 X-coded 8-pin(F)
Power Connector	M12 A-coded 5-pin(F)
LED Indicator	PWR、Link/ACT、
Bandwidth	1Gbps	1.6Gbps	10Gbps	16Gbps
Packet Forwarding Rate	0.74Mpps	1.19Mpps	7.44Mpps	11.9Mpps
Packet Buffer Memory	768kb	768kb	1.2Mb	2Mb
MAC Address Table	2k	2k	2k	4k
Network Protocols	IEEE 802.3、IEEE 802.3u、IEEE 802.3x		IEEE 802.3、IEEE 802.3u、IEEE802.3ab、IEEE 802.3x
OperationMode	Ethernet port support full duplex and half duplex auto negotiation, auto-MDI / MDI-X
Environment	Working temperature: -40～75℃ Storage temperature: -40～85℃ Ambient Relative Humidity: 5%~95 %( no condensation)
Installation	Wall-mounted，with cables exiting from the front/side panel
Heat dissipation	Natural heat dissipation
Power Input	DC 12-52V	DC 12-52V	DC 12-52V	DC 12-52V
Dimensions(mm)	170x108x41.2	170x132x41.2	170x108x41.2	170x132x41.2
Dimensions(mm)	170.1x106.5x28.9	170x132x41.2	170x108x41.2	170x132x41.2
